Sentey :: MBP 750 Watts MBP750-HM

Dedicated single +12V Rail

Modular Flat Cables

20mm Ultra-Quiet Fan

80 Plus Bronze Certified

U$S 59.⁹⁹

WHERE TO BUY

OVERVIEW
FEATURES
SPECIFICATIONS
GALLERY
REVIEWS
SUPPORT

MBP750-HM 750W

80 Plus Bronze Certified

MORE INFO

Certifications

80 PLUS BRONZE CERTIFIED

Power supplies that are certified 80 plus offer more than 80% of power conversion efficiency at 20%, 50% and 100% of total Energy Load, and at a power factor of 0.9 or greater at 100% load. The 80 Plus Certification is an initiative to promote greater energy efficiency for computer power supplies.

The Metal Blade Power Series features 87% of energy conversion efficiency, and thus is certified 80 PLUS. In turn because the MBP Series is so power efficient, it can help reduce your electric costs significantly, while at the same time offering the power and performance you need.

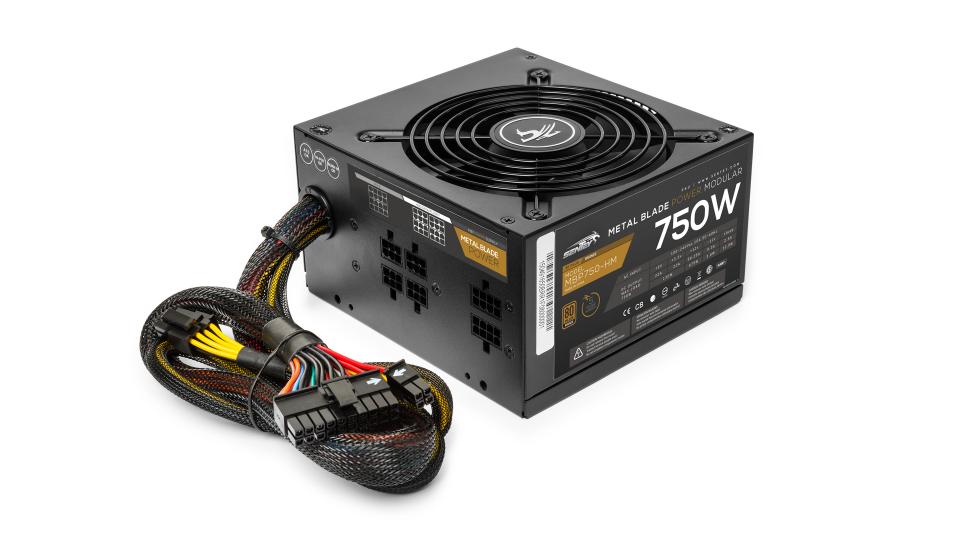

MODULAR CABLE MANAGEMENT SYSTEM

The Metal Blade Power Series has been designed to be modular, thus allowing the user to install the cables on an as needed basis. Saving space while reducing the amount of obstructions inside the case, and maximizing airflow within. The modular design also simplifies installation, as it allows the flexibility of installing only the cables needed. This modular design features solid locking connectors that provide the system optimal system performance and stability.

MATTE BLACK PAINT JOB

The MBP750 Series features a special Matte Black scratch resistant coating that combined with it’s ample connectors provide a pleasing and imposing aesthetic.

HIGH EFFIENCY AND MAXIMUM COOLING

With a unique and functional design that combines modern aesthetics with the power of a high-end product, the MBP Series is fit for even the most demanding users.

MORE DETAILS

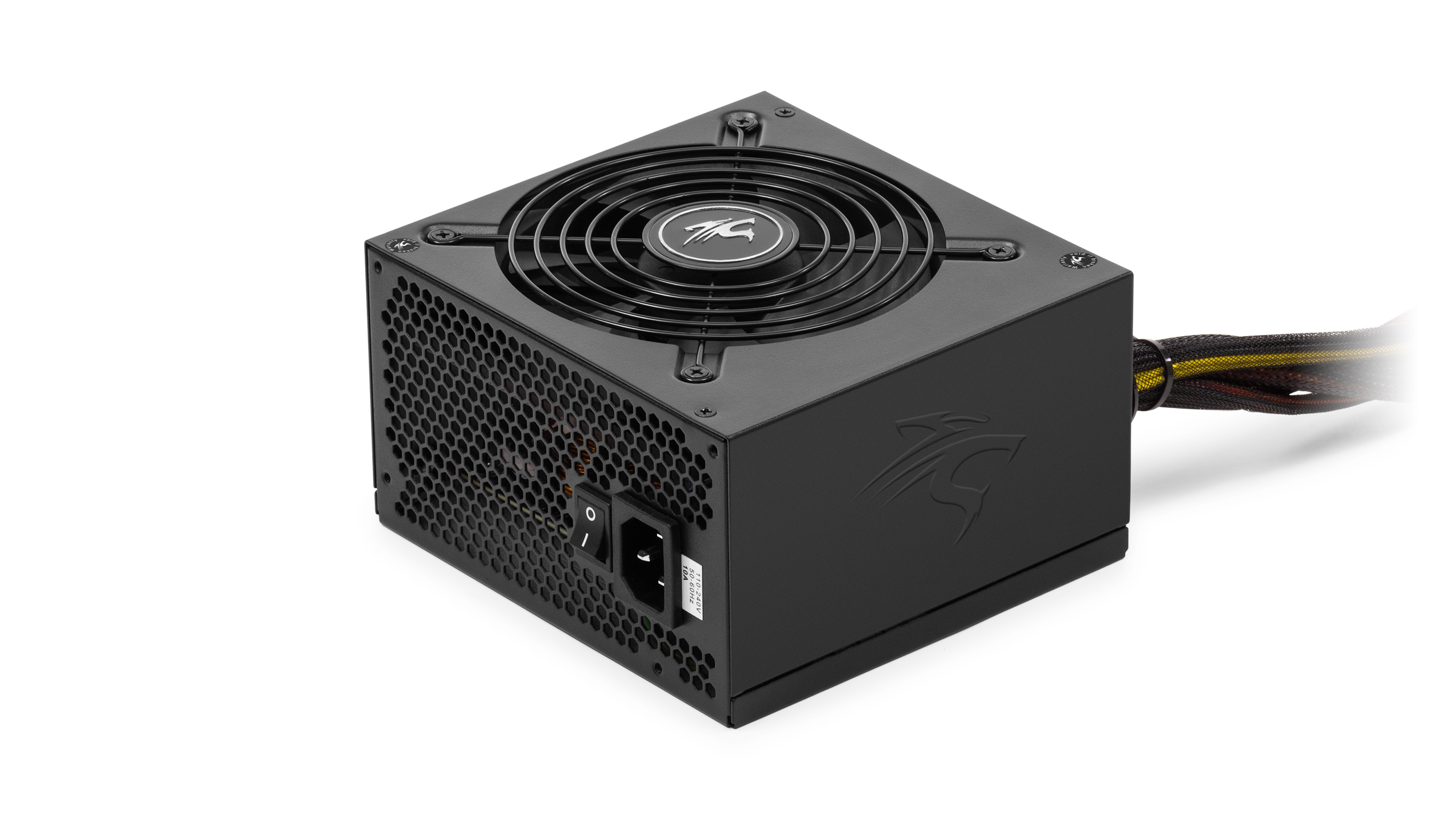

ULTRA-SILENCIOSO FAN COOLING

120MM SLEEVE BEARING

The Metal Blade Power Series of Power Supplies utilize a 120mm Sleeve Bearing fan that automatically adjusts it’s speed to provide just the right amount of air flow, and balances noise for optimal operation. This variance in speed allows for lower noise and avoids unnecessary dB’s when the computer is not tasked or idle.

DEDICATED SINGLE +12V RAIL

The Metal Blade Power features a single dedicated +12V rail, that simplifies component installation by having all the power on a single line, avoiding having to manually balance component load on multiple rails, thus providing greater compatibility and is ready for the latest generation of graphic cards.

UNIVERSAL AC INPUT WITH ACTIVE PFC

100-240V 10A FULL RANGE

Metal Blade Power Series features an Active Power Factor Correction (PFC), that provides better power efficiency because it has a circuit that actively corrects the power factor, and balances the waveform of the input current.

ACTIVE POWER FACTOR CORRECTION

The Active PFC can achieve a power factor of .99. A higher power factor reduces any transmission loss of power, and improves the efficiency and energy used from the power source (wall) to the system’s components. An active PFC is an important environmentally friendly feature.

QUALITY MAIN CAPACITOR

The Metal Blade Power Series utilizes capacitors Teapo brand , with the principle capacitor rated at 85ºC, which offer unmatched performance and reliability, and have great operational lifetime.

The principle capacitors are made by Teapo, and are classified to operate at 85°C for maximum reliability and service life.

MULTI PROTECCIONS DESIGN

The MBP series features multiple safeguards such as over voltage protection, under voltage protection, overload protection and short circuit protection which when triggered activate to protect the power supply. They automatically shut down the power supply to prevent damage to your system and any attached devices. Ensuring safe safe and reliable operation. With an unbeatable 5 year warranty. The MBP Series solidifies itself as a high-end product.

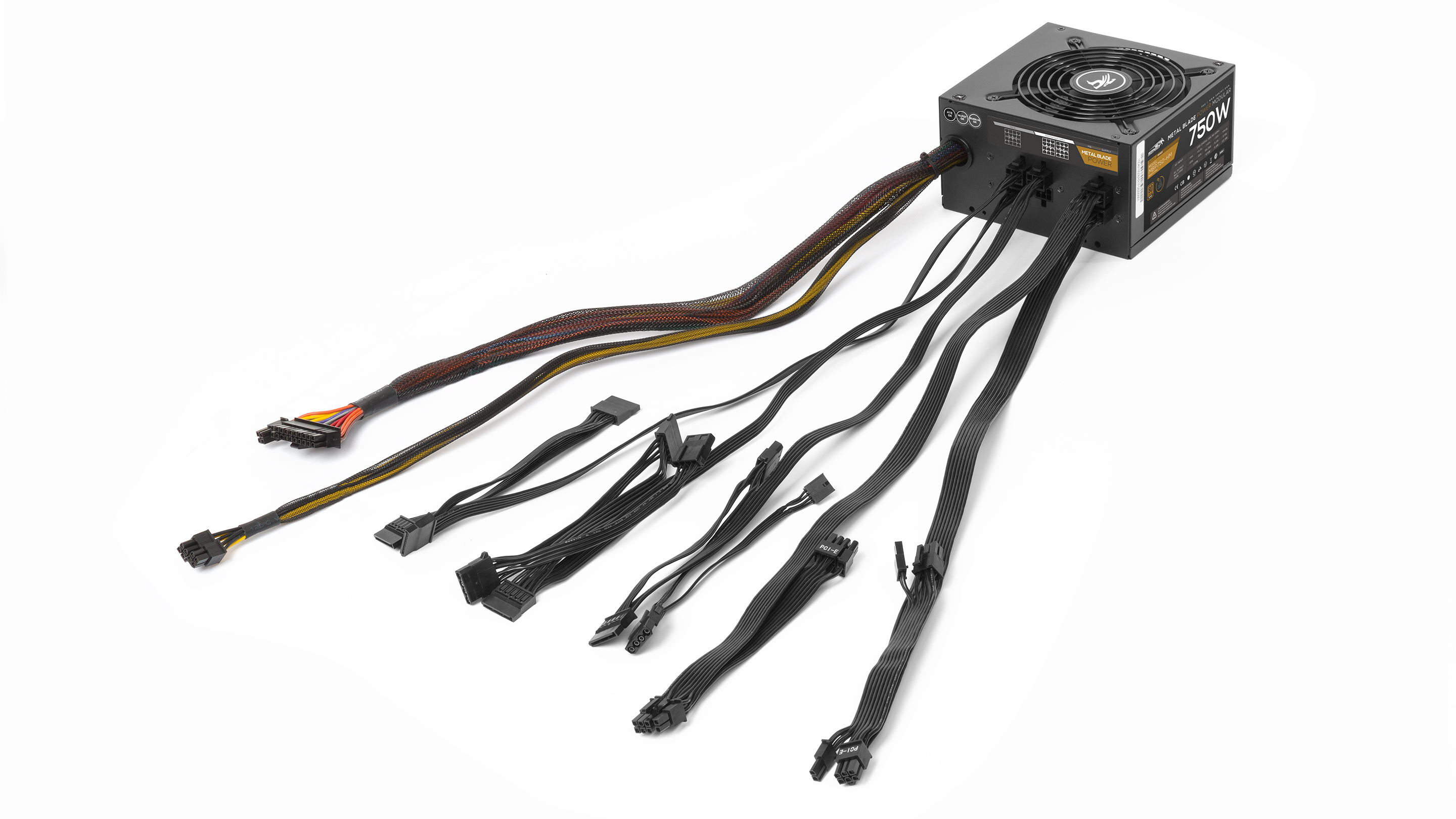

EXTRA-LONG MESH & FLAT CABLES

NYLON SLEEVED NATIVE CABLE

The native sleeving on the Metal Blade Power Series (MBP) protect the cables and prolong their service life by offering more useful and adequate insulation for mounting the cables inside the case.

FLAT MODULAR CABLES

The exclusive FLAT Modular cables provide an exceptional low footprint, and thus allow advantageous positioning of the cables inside the case, without compromising airflow.

SPECS LABEL

AC Input and DC Output voltage values per rail

CONNECTORS DETAILS

MBP750-HM’s Total Connectors

CONNECTORS DIAGRAM

Native cable connectors distribution diagram.

MORE DETAILS

SPECIFICATIONS

GENERAL
Series	Metal Blade Power
Model	MBP750-HM
Part Number	MBP750-HM
EAN	9771329907509
Warranty	5 Años

AC INPUTS
AC Input Current (A)	10A
AC Input Frequency (Hz)	50-60Hz
AC Input Voltage (Vac)	100-240Vac
Power Factor Corrector	>.99
Efficiency Typical Load	> 87%

LOAD RANGE
Max Output Power (W)	750 W
Max -12V Output Current (A)	0,3 A
Max -12V Power (W)	3.6 W
+12V Rail	Single
Max +12V1 Output Current (A)	62.5 A
Max +12V1 Power (W)	750W
Max +3.3V Output Current (A)	21 A
Max +5V Output Current (A)	21 A
Max +3.3V & +5V Power (W)	120 W
Max +5VSB Output Current (A)	3 A
Max +5VSB Power (W)	15 W

CONNECTORS
Motherboard 20+4pin	1
CPU +12V 4+4pin	1
SATA 5pin	6
Molex 4pin	4
Floppy 4pin	1
PCI-E 6+2pin	4

PHYSICAL SPECS
Cooling Fan Size	120mm Sleeve Bearing
Dimensions	140mm (L) x 150mm (W) x 86mm (H)
Net Weight	2,12 Kg
Painting Finish	Sandy Black
Form Factor	ATX
Gross Weight	2, 75 Kg
Pack Dimensions	325mm (L) x 210mm (W) x 100mm

PROTECTIONS
Over Power Protection (OPP)	Yes
Over Voltage Protection (OVP)	Yes
Short Circuit Protection (SCP)	Yes
Under Voltage Protection (UVP)	Yes

TECHNOLOGIES & FEATURES
Modular	Hibryd
AMD Crossfire	Ready
NVIDIA SLI	Ready
Power Factor Corrector	Active
Modular Flat Cables	Yes
Sleeve Natives Cables	Yes
Power Cord Certified	Yes
