Sentey :: Optimus Plus GS-6000 Plus

2x120mm Fan Cooler

Fan Controller

SSD/MMC

Windows Side Panel

U$S 74.⁹⁹

WHERE TO BUY

OVERVIEW
FEATURES
SPECIFICATIONS
GALLERY
REVIEWS
SUPPORT

USB 3.0 + CARD READER + FAN CONTROLLER

Sentey Optimus Plus has 1 USB 3.0 Highspeed Port, HD Audio, SD/MMC Card Reader and a Fan Controller to control the four included fans.

MORE INFO

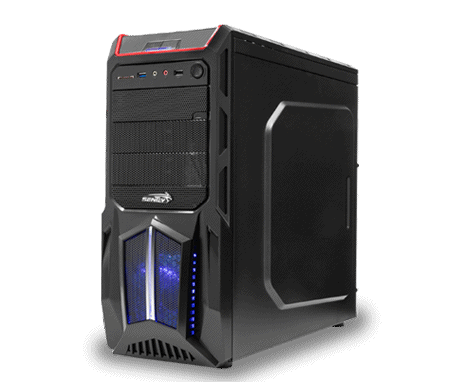

EXTREME GAMING

THE COMPUTER CASE FOR DEMANDING GAMERS

The Sentey Optimus Plus GS-6000 is a computer case for power users, engineered for a specific purpose, the Extreme Gamer.

It comes with two included fans from the factory. Plus has the ability to add five more optional fan, ensuring an excellent level of cooling, within the insides of the chassis and proper airflow cooling each of the hardware components installed on the system.

It also supports VGA up to 340mm in length, or the largest in the market, and CPU coolers up to 150mm tall.

MORE INFO

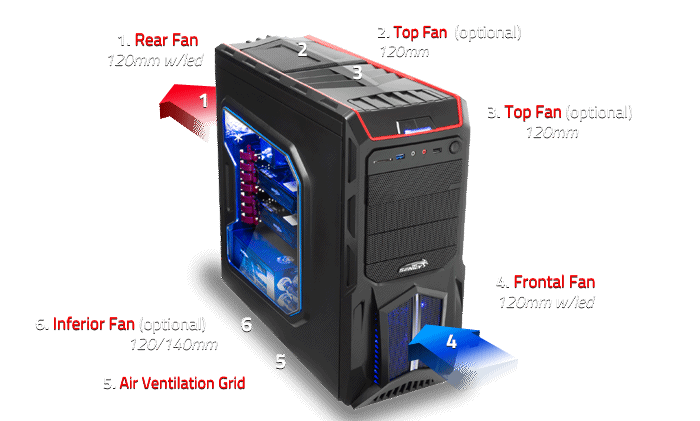

COOLING SYSTEM WITH FAN CONTROLLER

2 CASE FANS ARE INCLUDED. CASE IS WATER COOLING READY.

The Sentey Optimus Plus comes with a front 120mm blue LED fan and rear 120mm led fan to displace and exhaust the hot air generated within the chassis. In total, the case allows up to 5 fans to be installed, a frontal fan, two top fans, and one bottom fan, to complete the cooling system alongside the included rear exhaust fan.

MORE INFO

ACCESSORIES

Mounting Screws

All mounting screws needed for assembly of components are included

PCI Slot Cover

A PCI Slot cover is included if necessary.

Speaker

Generates audible fault beeps / sounds at boot up.

Zip Ties

For cable management

AWARDS

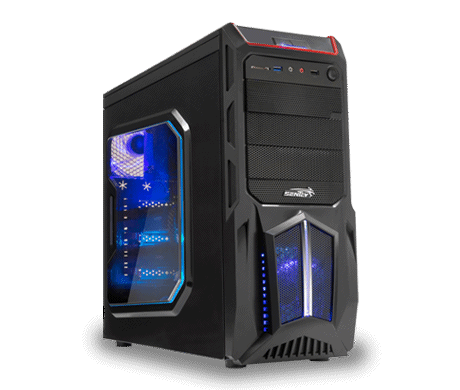

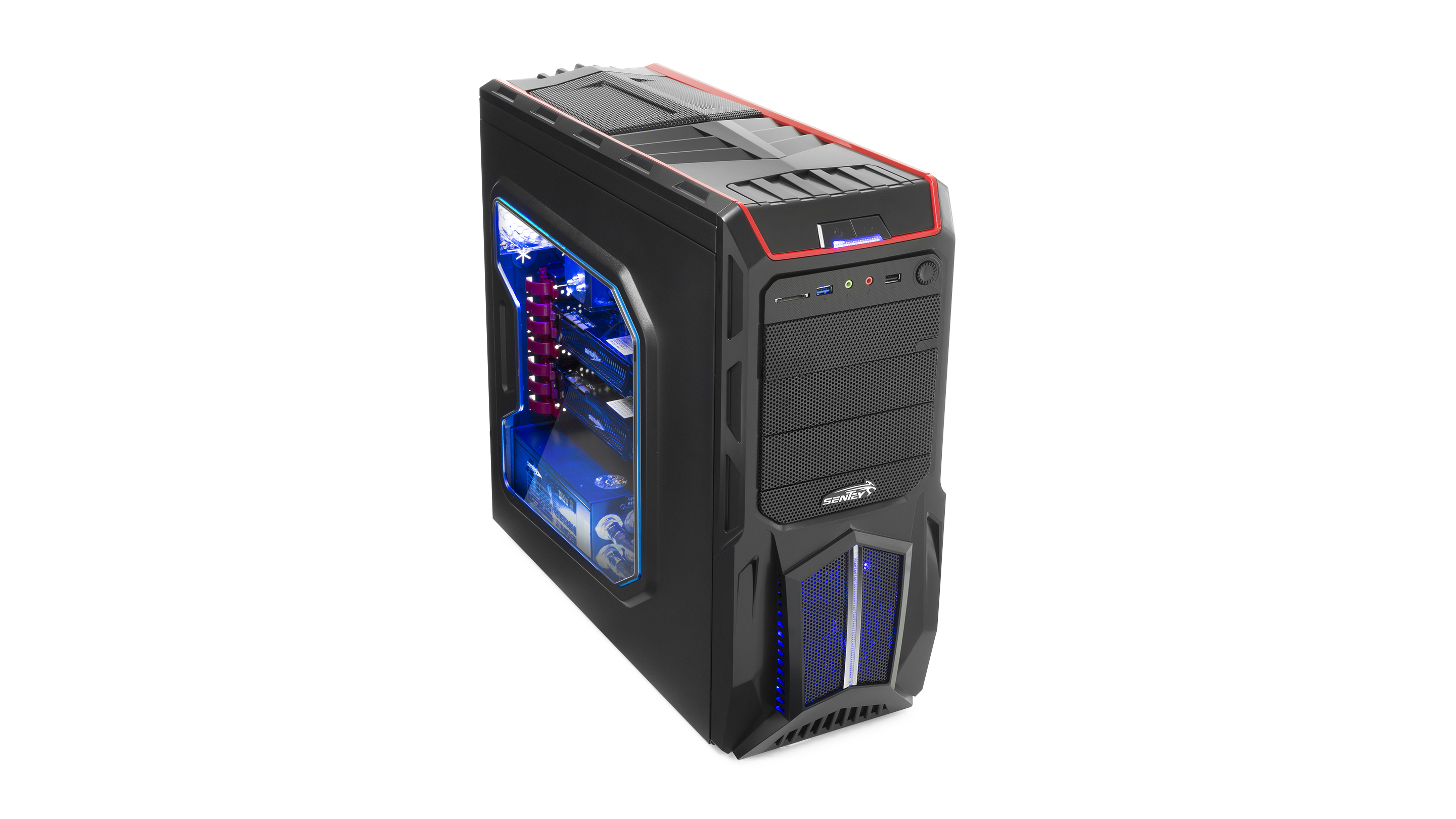

GAMING DESIGN WITH SIDE PANEL WINDOWS

SIDE VIEW

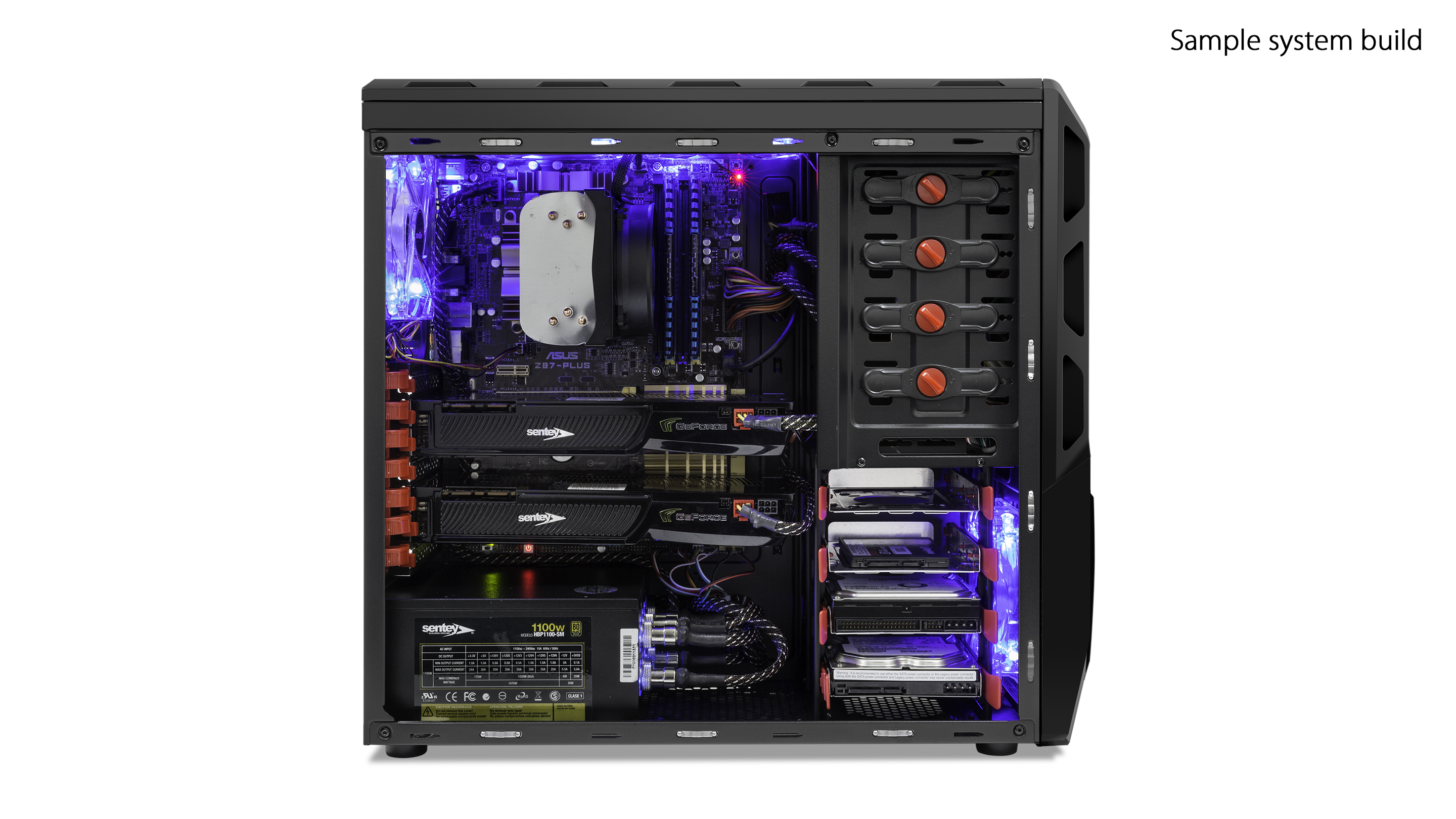

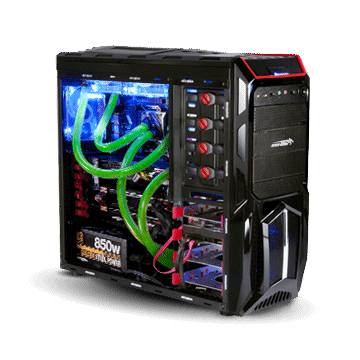

The Sentey Optimus Plus supports multiple High End Graphics cards, Watercooling, SSD drives and high capacity power supplies.

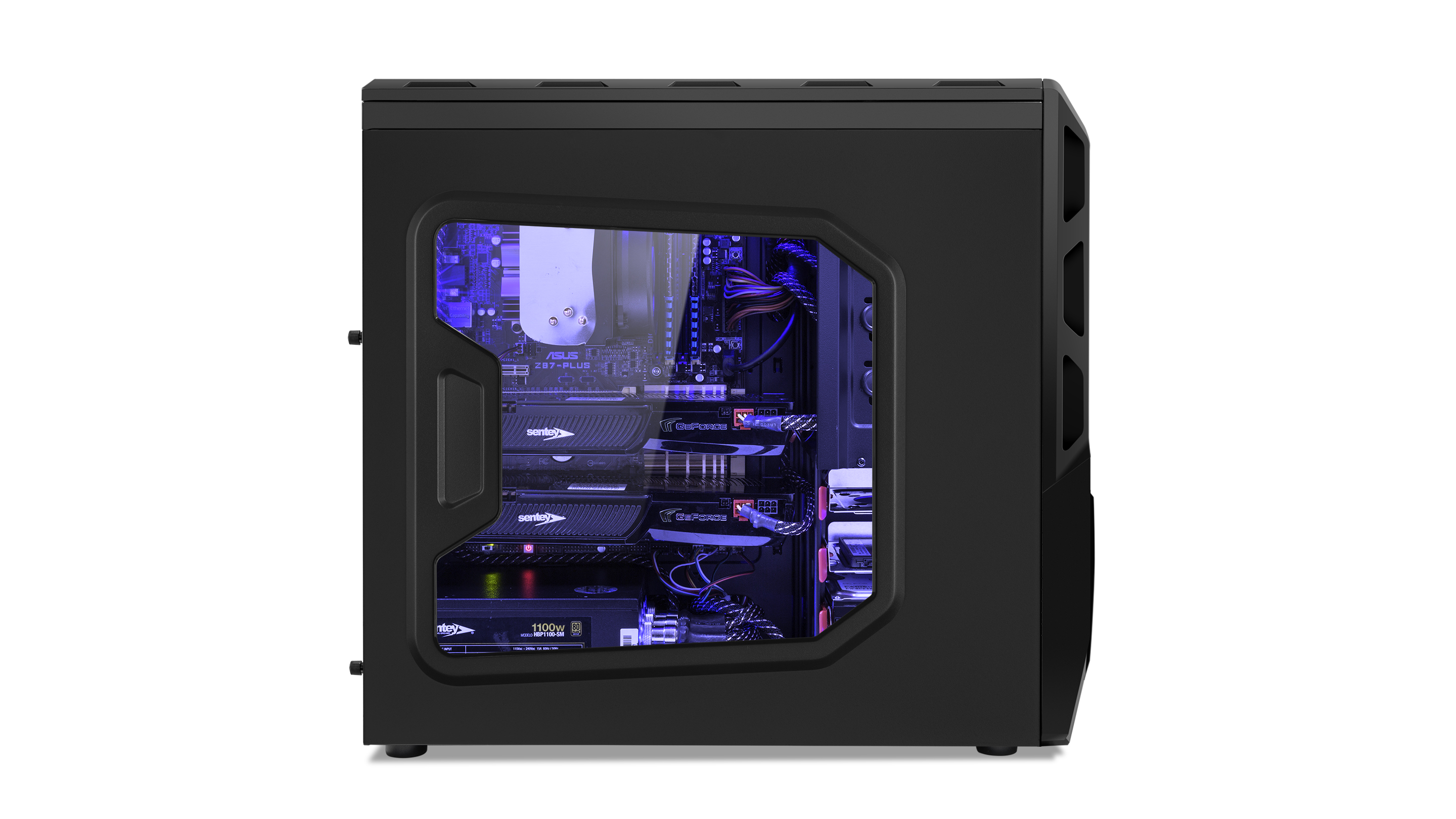

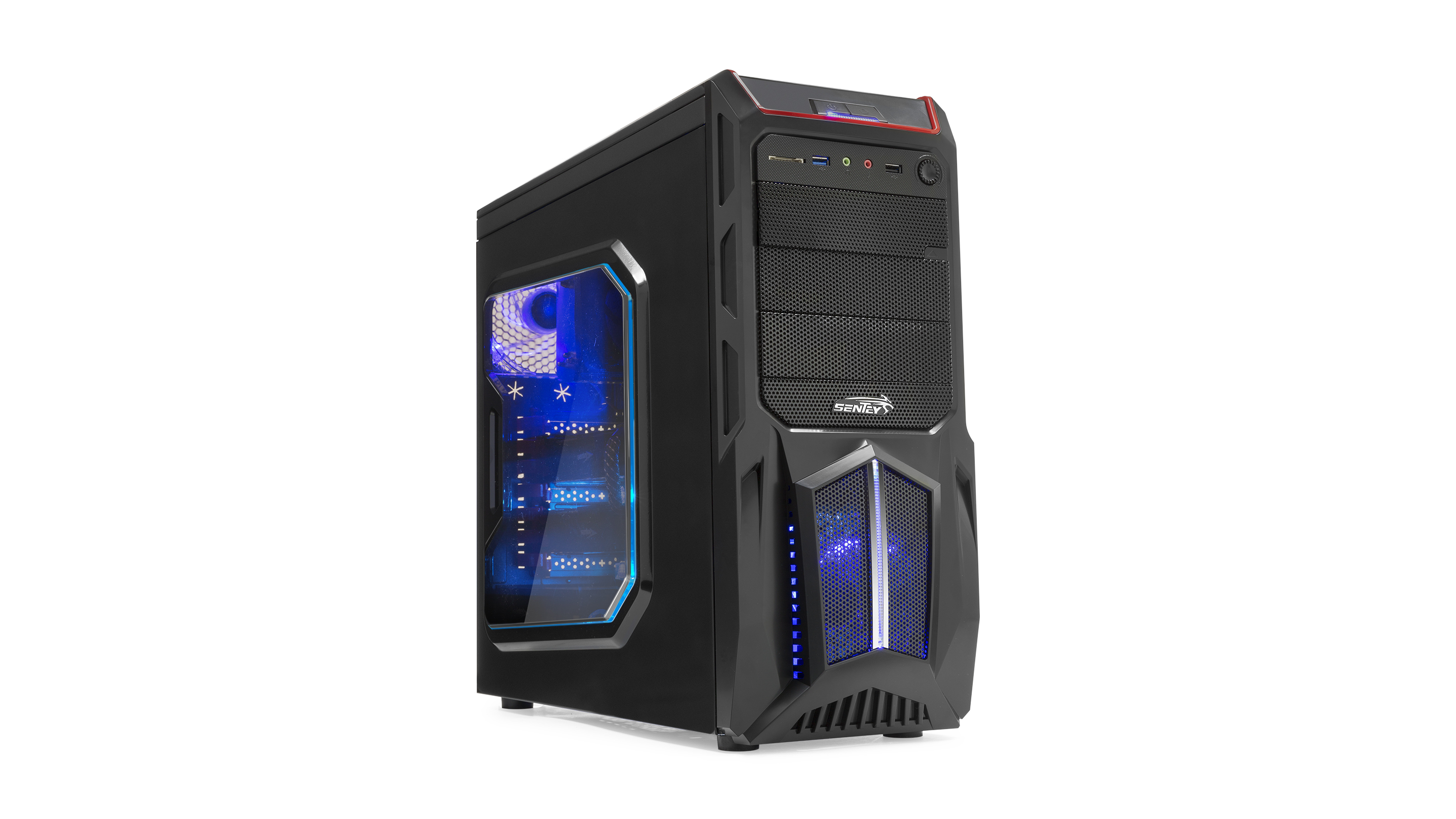

WINDOW SIDE PANEL SIDE VIEW

The side panel has a specially designed with window view.

MESH DESIGN

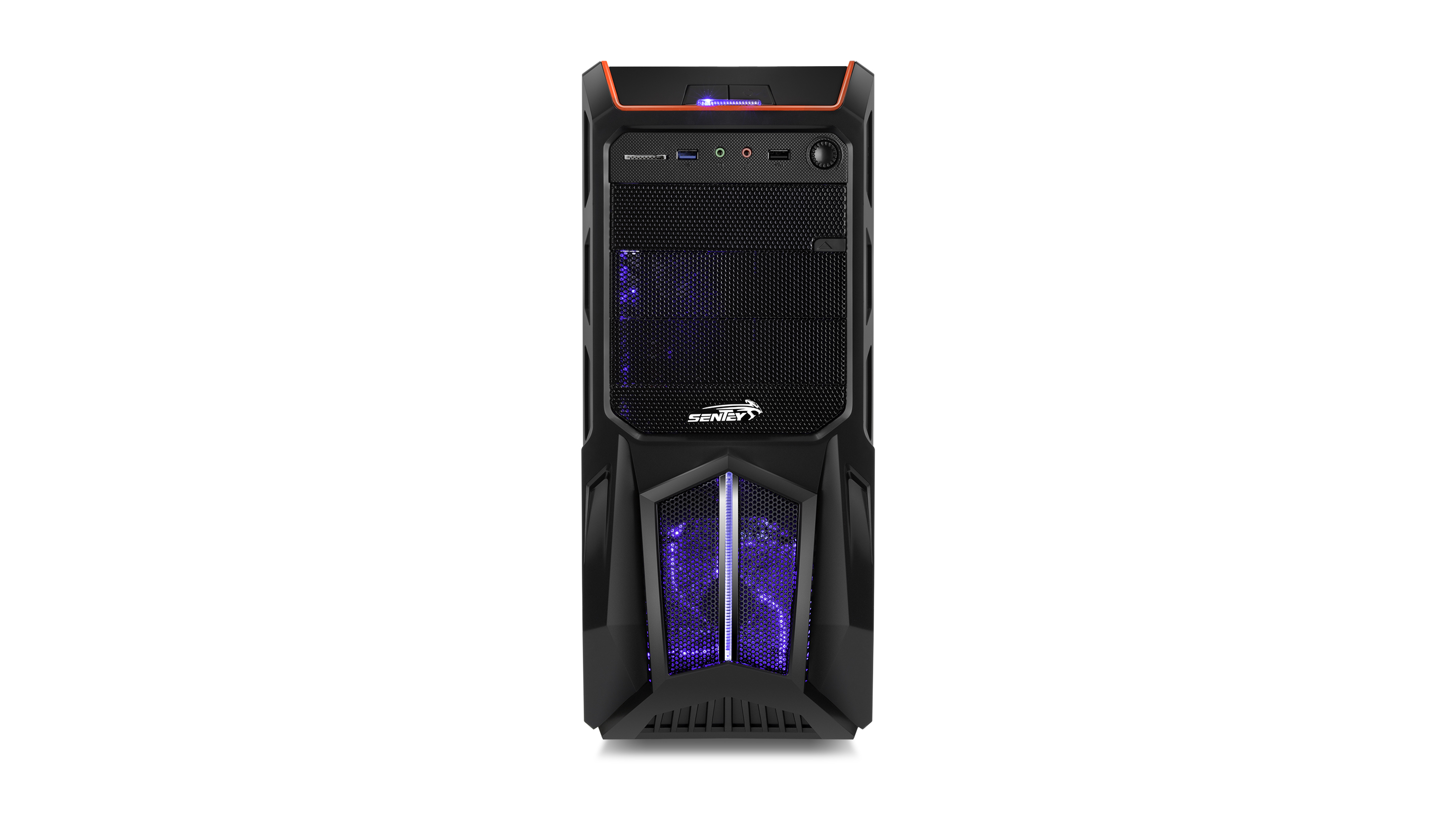

Both the front panel and the top panel are designed for optimal cooling through a superior airflow layout composed of mesh panels. The front is comprised of a metallic mesh that allows fresh air to enter. This unique mesh design impedes dust from entering inside while allowing air to flow freely.

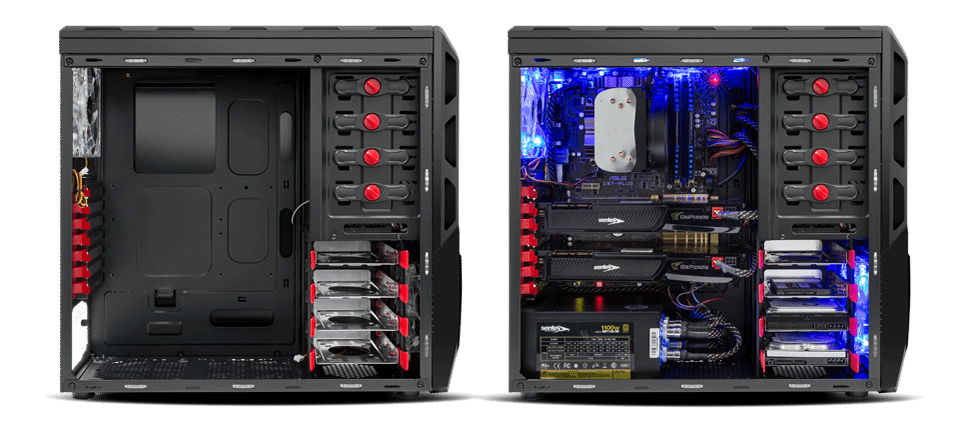

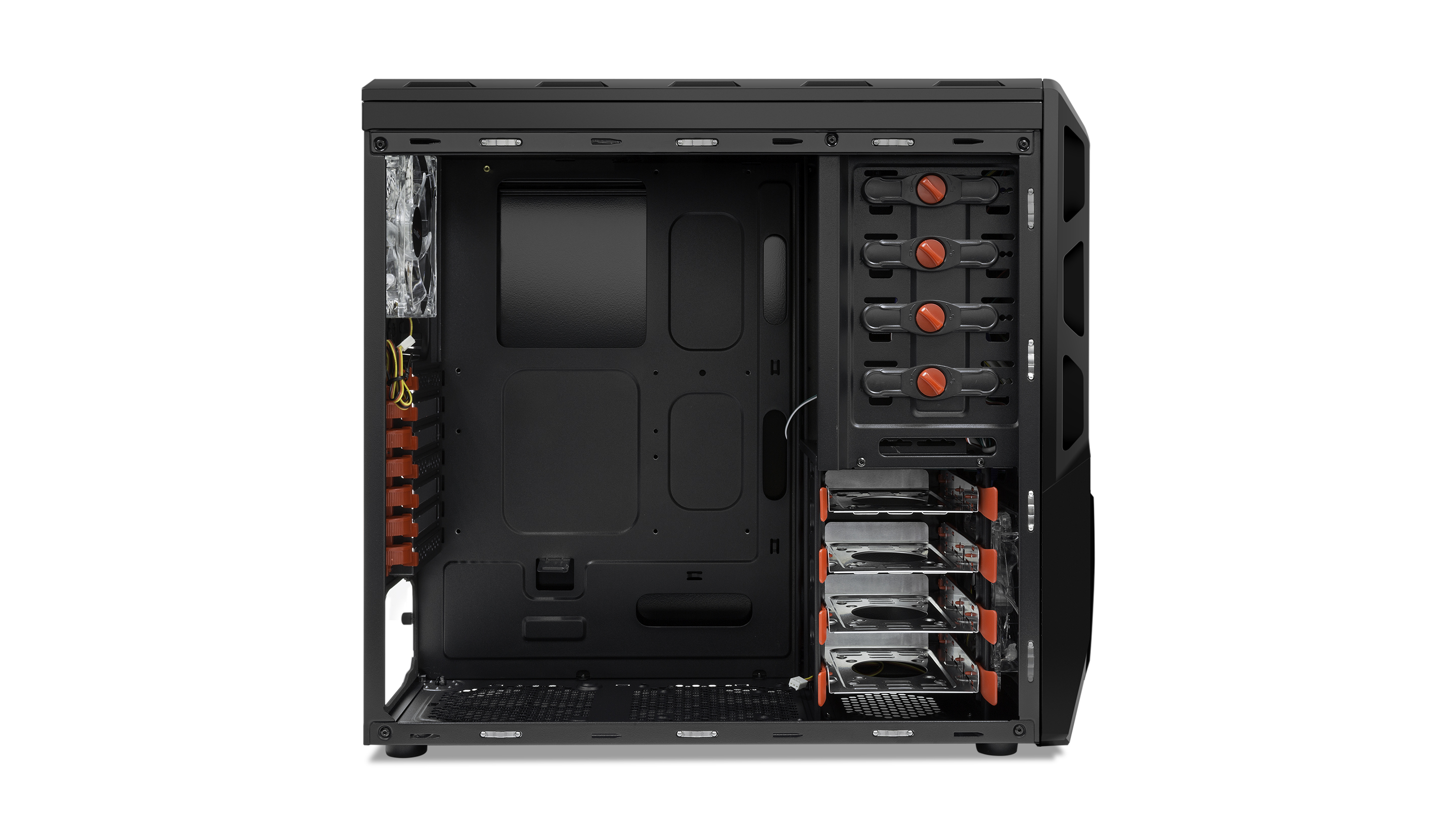

CABLE MANAGEMENT AND MOTHERBOARD TRAY LAYOUT

Sentey Optimus plus features cable routing grooves so cables can be optimally managed and hidden behind the motherboard tray. This allows for a cleaner and more prominent system with a focus on components themselves while having the benefit of facilitating the unobstructed circulation of air. The motherboard tray window allows the CPU Cooler to be easily removed for cleaning and / or replacement without having to unmount the motherboard. This feature saves alot time in assembling and testing the components.

FORM FACTOR: ATX / M-ATX

Sentey Optimus II supports Micro ATX and ATX motherboards, and has room for up to seven PCI Expansion slots, all embedded in an easy to use tool-less design.

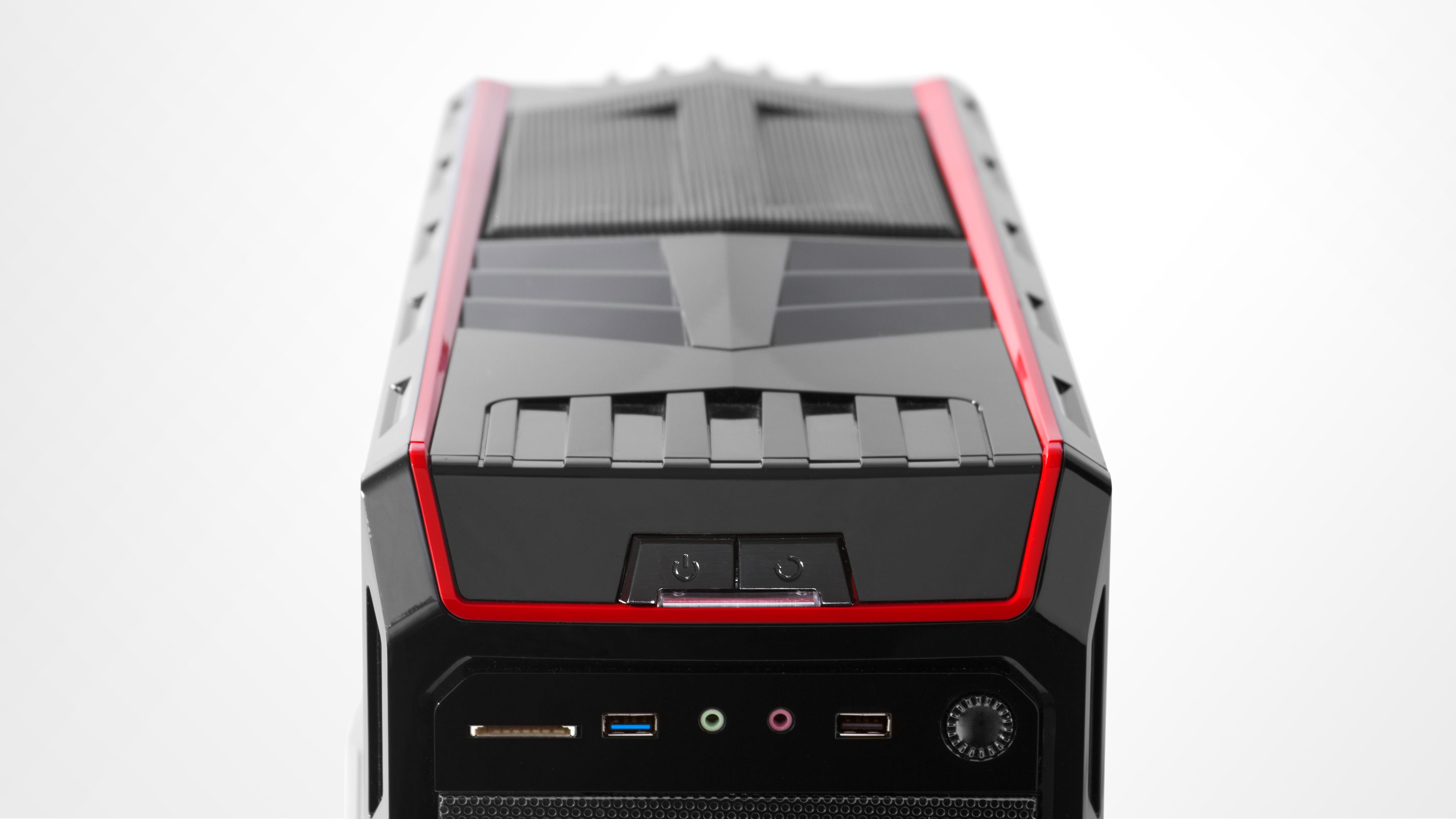

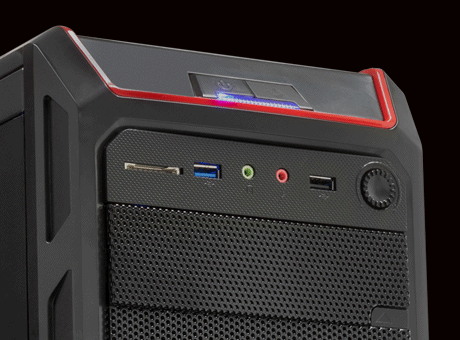

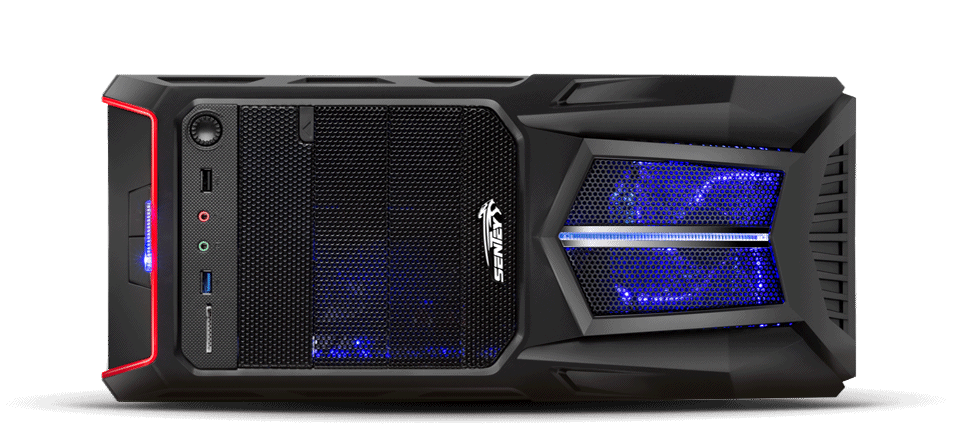

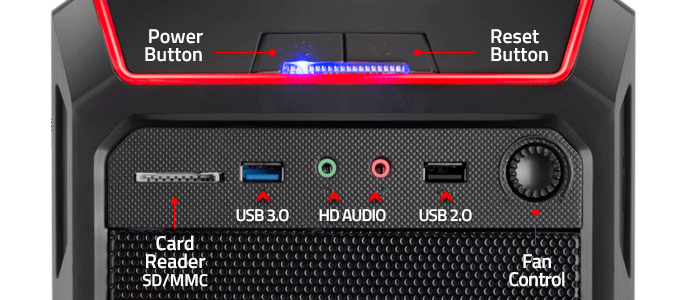

FRONT PORTS

The top of the case features ideally placed buttons and ports for easy access. All Input / Output ports are within reach. 1 USB 3.0 Port + 1 USB 2.0 Port are accompanied by a SD/MMC Card Reader, alongside HD Audio and microphone ports, and the power button and reset buttons are all very accessible to the user. Also on the front, there is a fan controller that regulates the fan speed or R.P.M.

• 1 USB 3.0 Port + 1 USB 2.0 Port
• SD/MMC Card Reader
• Fan Controller + HD Audio

REMOVABLE ALUMINUM DRIVE BAYS

SUPPORTS 4 3.5" OR 2.5" HDDS

Sentey Optimus II supports a total of four hard disk drives, any combination of 3.5" and or 2.5” drives; SSD’s included.

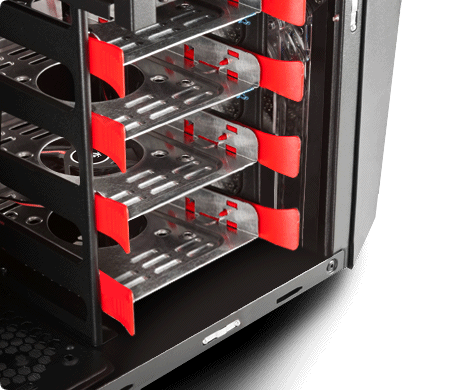

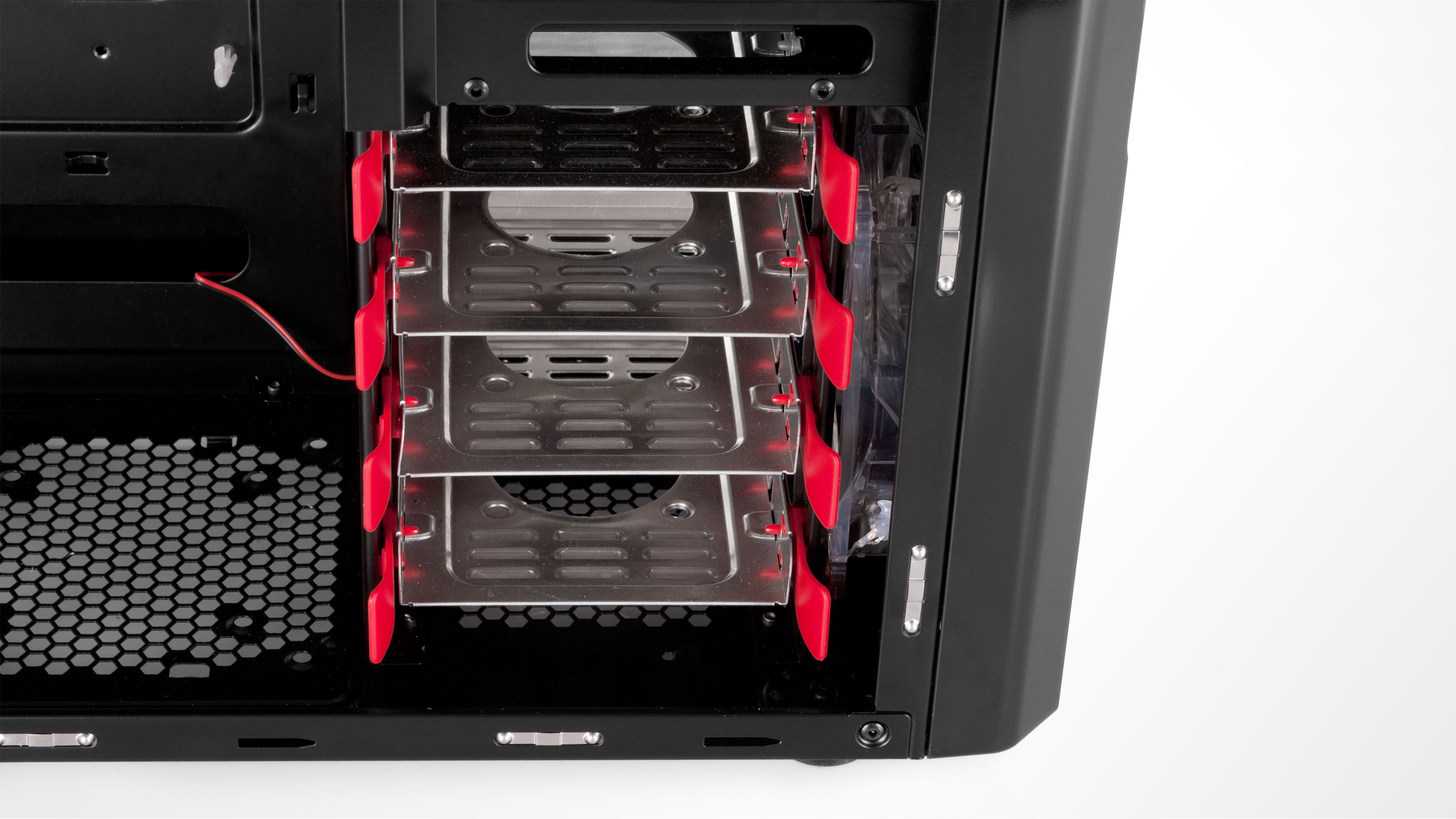

REMOVABLE ALUMINUM TRAYS

The removable trays are made of aluminum, and support both mechanical and solid state hard disk drives. Each tray is independent and has the option to mount a slim 60mm fan for additional cooling.

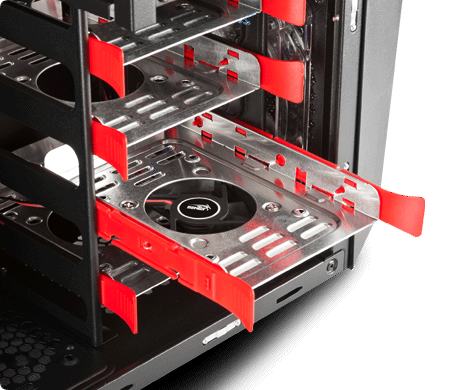

SLIM 60MM HDD FAN

One of the four HDD Aluminium Trays comes with a 60mm Slim fan installed. This fan is specially designed for optimal HDD cooling.

The 60mm Slim fan comes premounted in the tray, and it is possible to add additional 60mm Slim fans to the other trays.

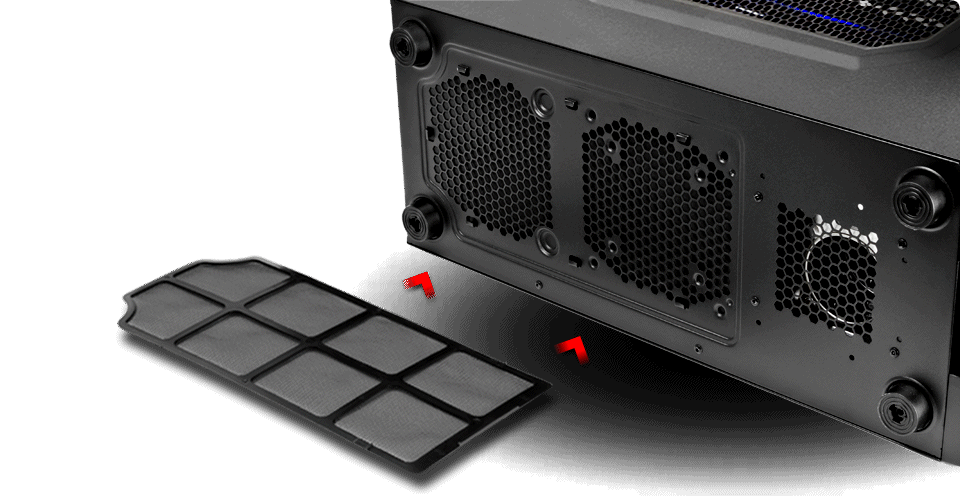

BOTTOM DUST FILTERS

A bottom mounted dust filter covers and filters the bottom openings of the case. It is simple to remove, making it very easy to clean it. This filter prevents dust from entering the inside of the chassis.

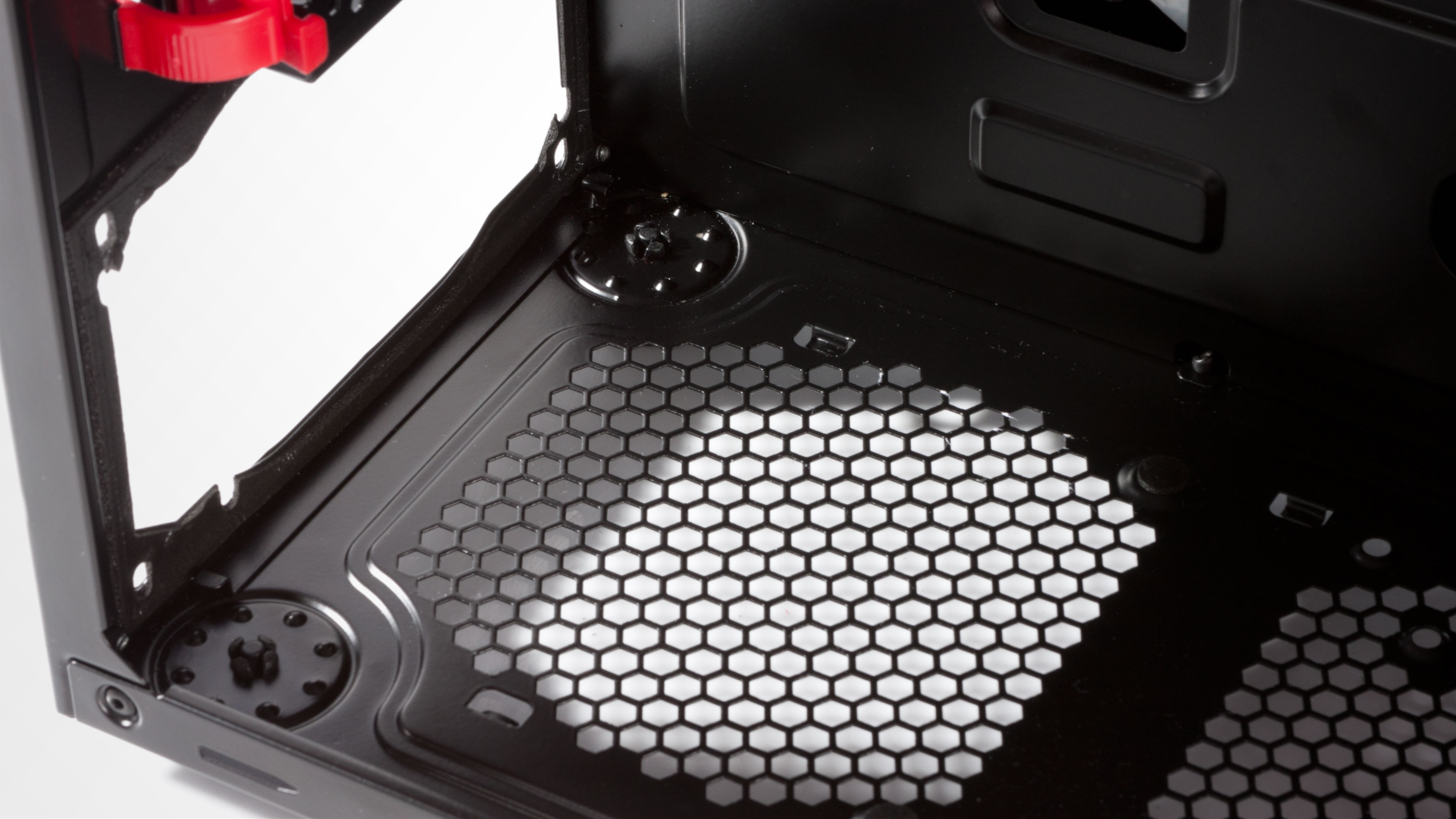

HONEYCOMB FAN GRILL OPENINGS:

1) Powersupply grill
2) Lower fan grill
3) HDD grill

MORE DETAILS

GAMING DESIGN

FRONT COOLING

Front grille composed of mesh for ventilation

TOP COOLING OPTIONAL

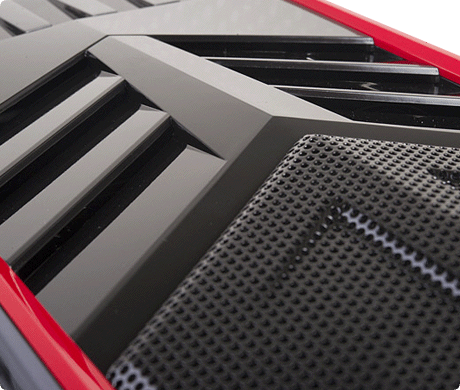

Mesh Top Panel with Fins

HIGH END GRAPHICS CARD SUPPORT

SUPPORTS UP TO 340MM LONG GRAPHICS CARDS

Optimus II’s long length accommodates up to three HIGH END dual slot video cards that are 340mm long without any problem, thus satisfying even the most demanding gamer.

CPU COOLERS THAT ARE UP TO 150MM IN HEIGHT ARE SUPPORTED

It is increasingly common to use high-end CPU coolers whose height is larger than the standard included cooler. The Sentey Optimus II has capacity for coolers up to 150mm tall.

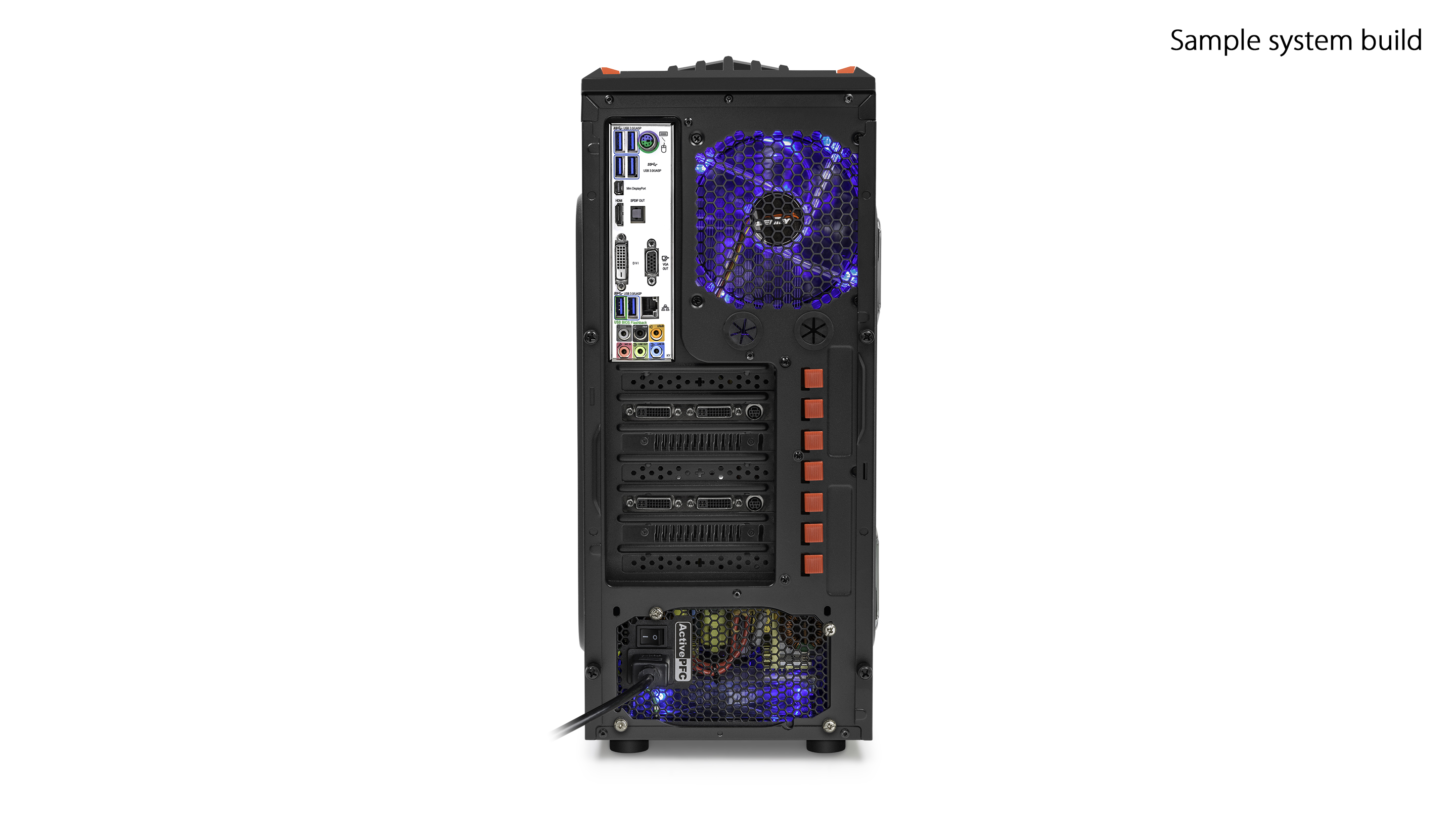

PSU MOUNTING

Power supply mounting is located at the bottom rear of the case, with the added possibility of installing an optional fan under it in either orientation. This mounting allows the case to be 100% compatible with all standard power supplies. If the PSU is mounted with its fan facing downwards, the chassis has a grate patterned mesh grill that allows optimal airflow, preventing components inside the case of overheating.

An additional benefit of a bottom mounted PSU is that size is not a problem. Because of where the PSU is located, it won’t interfere with any other components. So you can install an extra large sized PSU without any problems.

TOOL-LESS DESIGN, QUICK TO INSTALL

PLASTIC TOOL-LESS BRACKETS

Allow the installation of 5.25” drive bay units, such as a BluRay optical drive to be mounted without the use of any tools.

ALUMINUM HDD TRAYS

Allow the quick installation of HDD’s.

PCI LOCKS

Allow the installation a VGA or PCI compliant expansion card without the need to use any tools.

SPECIFICATIONS

CASE
Name	Optimus Plus
Model	GS-6000 Plus
Part Number	GS-6000 Plus
Warranty	1 Year
UPC	812366022660

STRUCTURE
Type	Mid Tower
Color	Black
Material	SECC 0.7mm Steel
Motherboard Compatibility	ATX, M-ATX
Power Supply Mounted	Bottom
VGA Max Length	340mm
CPU Cooler Max. Size	150mm
Watercooling Support	Yes, Dual Tube Passthrough
Motherboard Tray	Yes
Cable Management	Yes

EXTERIOR
Color	Sandy Black
Front	Mesh
Feet	15mm Plastic Feet
Side Panel	Windows
Top Panel	With Fins
LCD Display	No
Thumbscrews	Yes

EXPANSIONS
External 5.25” Drive Bays	3
External 3.5” Drive Bays	No
Internal 3.5” Drive Bays	4
Internal 2.5” Drive Bays	4
Expansion Slots	7

FRONT PORTS
USB 3.0	1
USB 2.0	1
Audio	HD Audio / AC97
E-sata	No
SATA	No
Card Reader	SSD/MMC
Fan Controller	Yes

COOLING SYSTEM
Front Fan	1x120mm Blue LED Fan
Side Fan	No
Side CPU Fan	No
Top Fan	2x120mm (Optional)
Bottom Fan	1x140mm/120mm (Optional)
Rear Fan	1x120mm Blue LED Fan
HDD Bay Fan	Slim 60mm x1

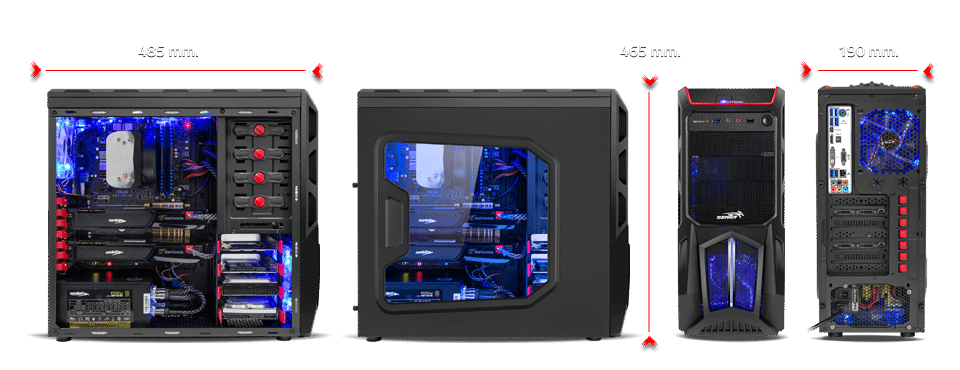

PHYSICAL SPECS
Height	455mm
Width	190mm
Length	485mm
Net Weight	6.0kg
Gross Weight	7.1kg
Packaging	500mm (L) 240mm (A) 540mm (H)

EXTRAS
Dust Filter	Front, Bottom, Top

Optimus Plus
